DC-DC 8V-32V to 5V 3A USB Type-C
DC-DC 8V-32V to 5V 3A USB Type-C
DC-DC 8V-32V to 5V 3A USB Type-C
DC-DC 8V-32V to 5V 3A USB Type-C
DC-DC 8V-32V to 5V 3A USB Type-C
DC-DC 8V-32V to 5V 3A USB Type-C
DC-DC 8V-32V to 5V 3A USB Type-C
DC-DC 8V-32V to 5V 3A USB Type-C

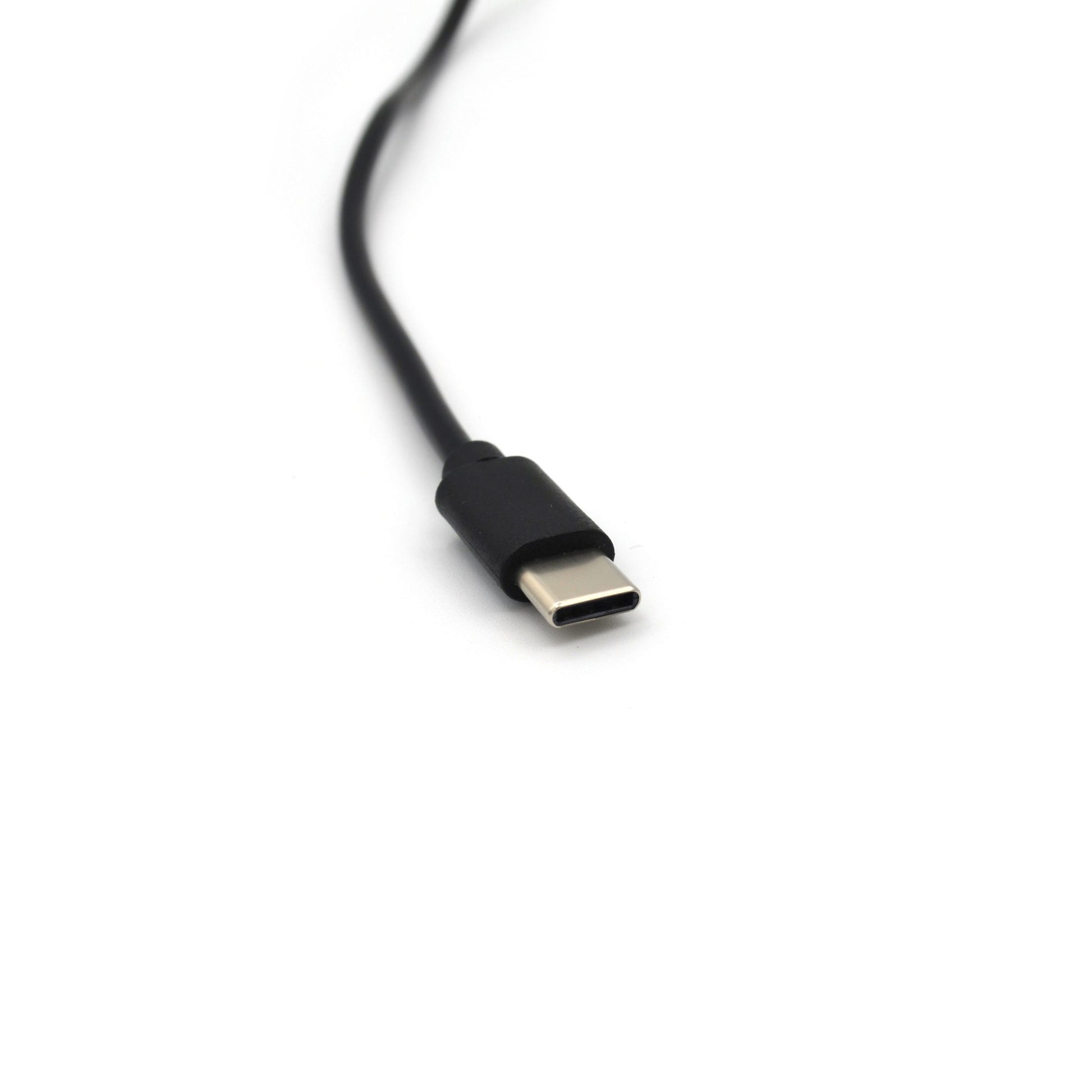

Anschlusstyp:USB-C

DC-DC 8V-32V to 5V 3A USB Type-C

Artikelnr.: 02-01-07

GTIN:0096718089567

Staub und Wasserdicht
Verfügt über mehrere Schutzschaltungen
Wirkungsgrad bis 91%
Kompakte Größe
Title
€12,99 EUR

incl. VAT
Free shipping in Germany

Immediately Available
Sold out
Back in stock soon
Hurry! BUY NOW

Immediately Available

Title
  • PayPal
  • Mastercard
  • Maestro
  • Visa
  • Google Pay
  • Apple Pay
  • American Express
  • Union Pay
  • Rechnung

Technical Support

Free shipping within Germany

30-day returns

PayPal Buyer Protection

Pay in 30 days

  • Product Description

  • 3D model

  • Technical specifications

  • Downloads

  • Field of application|The popular 12v to 5v supply can be used as an upstream transformer or an extended USB socket in cars, boats, quads, tractors, motorhomes, vehicles, or in the house and garden.
  • Waterproof to IP68|The charger is encapsulated with epoxy resin to be waterproof, allowing for individual use, e.g., outdoors as a power supply for lighting or at sea when installed in boats.
  • Protective circuits|Overvoltage protection, reverse polarity protection, short-circuit protection, overload protection, and overheating protection ensure safety. Please refer to the data sheet of the respective device.
  • Manufacturing|By manufacturing in an ISO 9001-certified facility with functional tests and quality checks, we can minimize defects and optimize workflows and costs.
  • Robust|Encapsulating the electronic components in the housing achieves enormous stability and resistance to vibrations. A long service life and integrity are guaranteed.

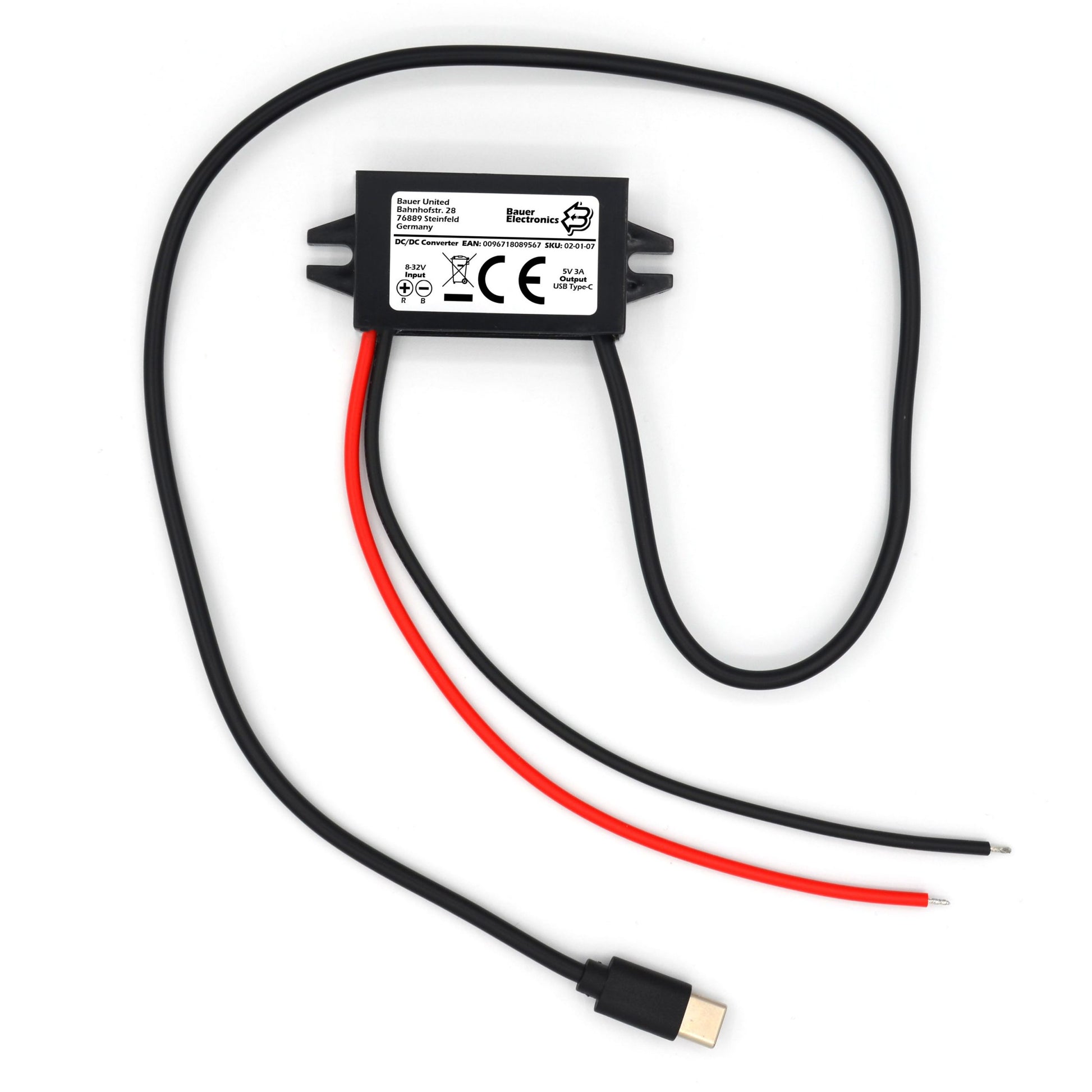

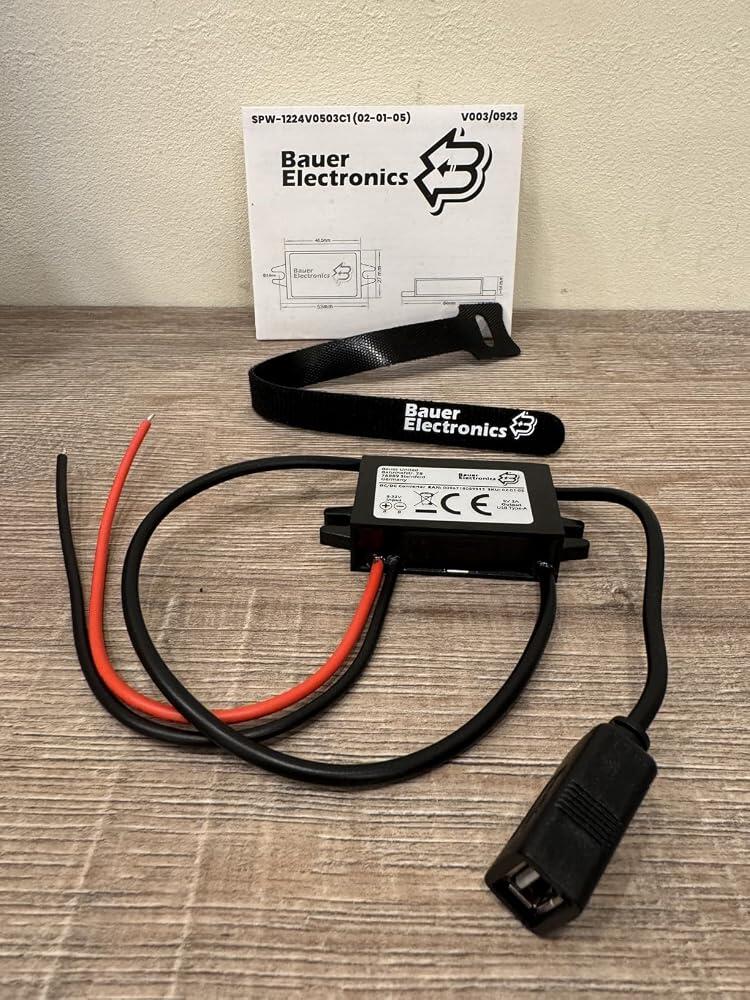

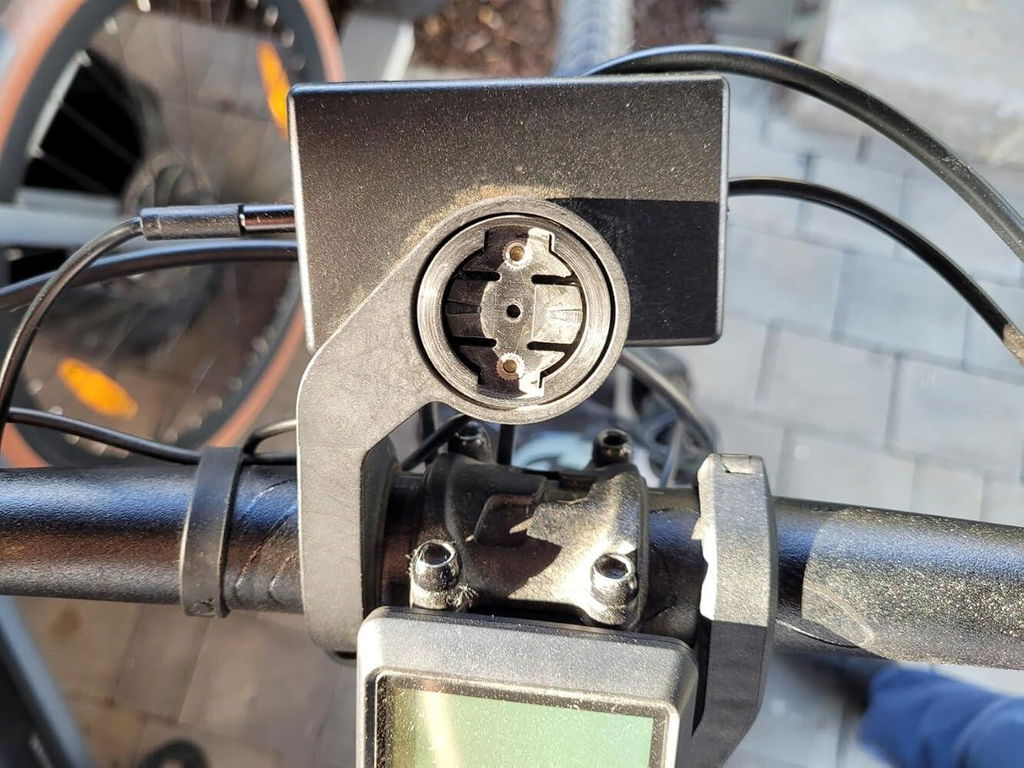

  • Connection|The DC/DC converter is supplied with tinned, open ends or with a USB port and can be installed directly, for example, as a charging station for a mobile phone or navigation system on a motorbike or e-bike.
  • Performance|When choosing a device, ensure sufficient leeway in the voltage range, both upwards and downwards. Plan for a buffer in terms of amperage due to increased initial loads.
  • Caution|Never operate electrical devices permanently at their power limit, as this can lead to damage. Ensure that cables are intact and that the connections have the correct polarity.
  • Not suitable|QC (Quick Charge) is not possible with these DC-DC converters. This requires communication between the charger and the end device.
  • Cooling|The module can provide the maximum specified output current without active cooling, making it silent in operation. Depending on the load, heat generation should be expected.
Warnhinweise und Inkompatibilität
Nicht mit Quick Charge (QC) kompatibel
Model:SPW-1224V0503TC (02-01-07)
Restwelligkeit:30 mV
Max. Nennleistung:15 W
Max. Nennstrom:3 A
Wirkungsgrad (Typ):91% @ 12V in; 90% @ 24V in
Eingangsspannungsbereich:8–32 V
Arbeitstemperatur:-35 to +80 °C
Wasserfestigkeit:IP68
Überlastschutz:Yes
Überhitzungsschutz:Yes
Überspannungsschutz:Yes
Kurzschlussschutz:Yes
Nennspannung:12/24 V
Leerlaufstrom: 3 mA (12V input)
Galvanisch getrennt:No
Abmessungen:64 x 27 x 14 mm
Gewicht:41 g
Kühlung:Air
Gefertigt nach:ISO 9001:2015
CE-Konformitäten:EMC 2014/30/EU, RoHS 2011/65/EU
ZertifizierungenZertifizierungenZertifizierungen

Product Description

  • Field of application|The popular 12v to 5v supply can be used as an upstream transformer or an extended USB socket in cars, boats, quads, tractors, motorhomes, vehicles, or in the house and garden.
  • Waterproof to IP68|The charger is encapsulated with epoxy resin to be waterproof, allowing for individual use, e.g., outdoors as a power supply for lighting or at sea when installed in boats.
  • Protective circuits|Overvoltage protection, reverse polarity protection, short-circuit protection, overload protection, and overheating protection ensure safety. Please refer to the data sheet of the respective device.
  • Manufacturing|By manufacturing in an ISO 9001-certified facility with functional tests and quality checks, we can minimize defects and optimize workflows and costs.
  • Robust|Encapsulating the electronic components in the housing achieves enormous stability and resistance to vibrations. A long service life and integrity are guaranteed.
  • Connection|The DC/DC converter is supplied with tinned, open ends or with a USB port and can be installed directly, for example, as a charging station for a mobile phone or navigation system on a motorbike or e-bike.
  • Performance|When choosing a device, ensure sufficient leeway in the voltage range, both upwards and downwards. Plan for a buffer in terms of amperage due to increased initial loads.
  • Caution|Never operate electrical devices permanently at their power limit, as this can lead to damage. Ensure that cables are intact and that the connections have the correct polarity.
  • Not suitable|QC (Quick Charge) is not possible with these DC-DC converters. This requires communication between the charger and the end device.
  • Cooling|The module can provide the maximum specified output current without active cooling, making it silent in operation. Depending on the load, heat generation should be expected.
Warnhinweise und Inkompatibilität
Nicht mit Quick Charge (QC) kompatibel

3D Model

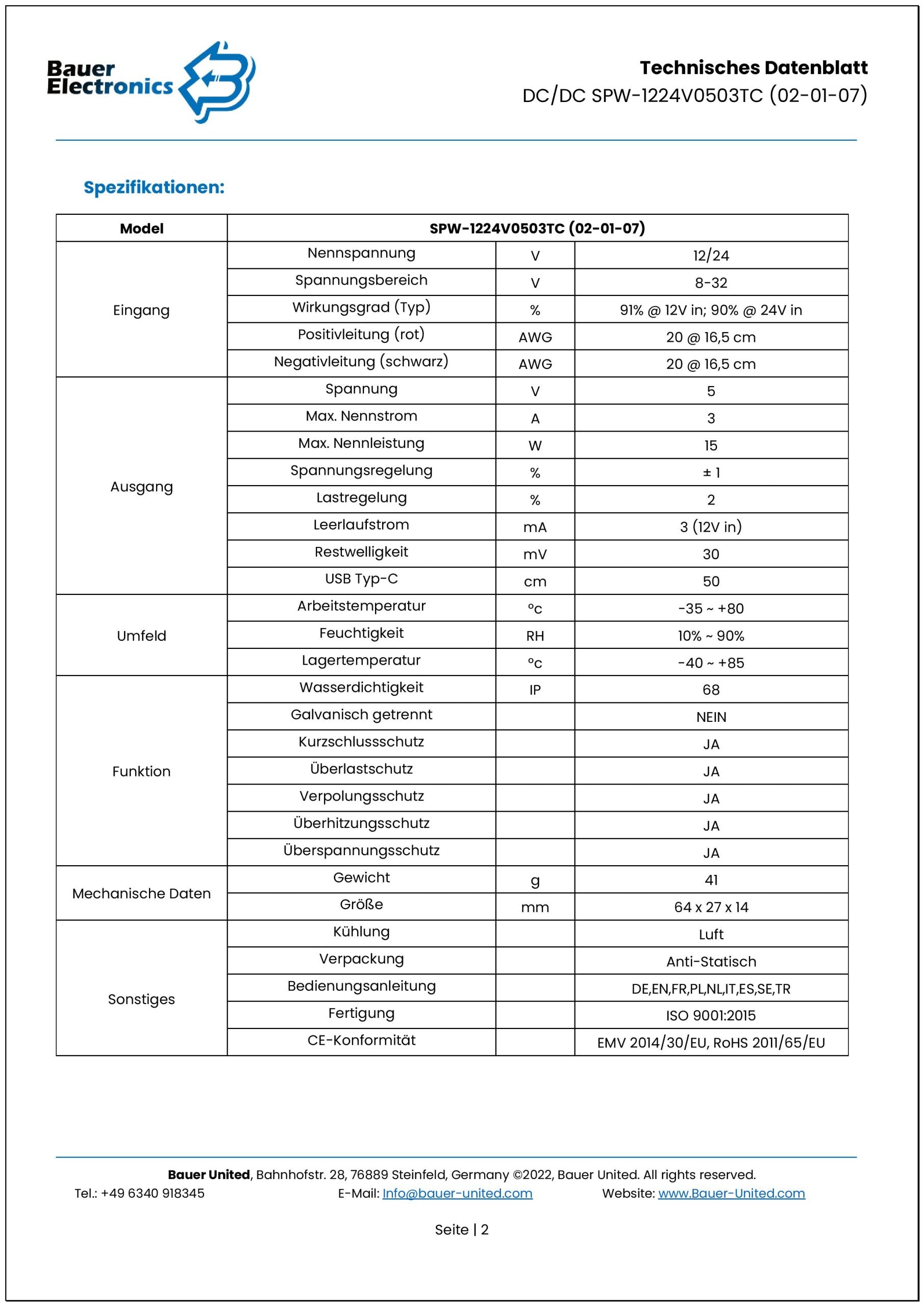

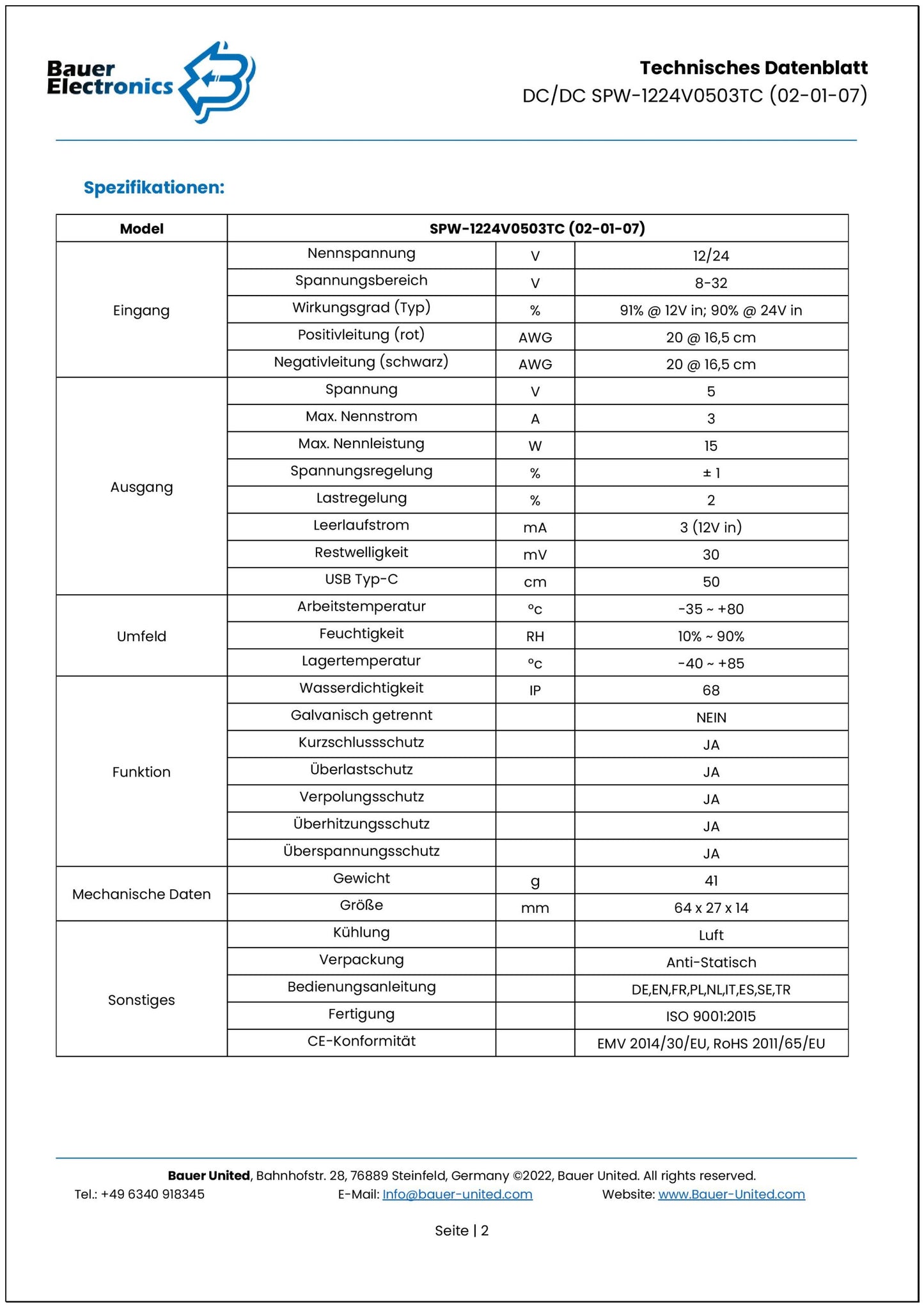

Technical Data

Model:SPW-1224V0503TC (02-01-07)
Restwelligkeit:30 mV
Max. Nennleistung:15 W
Max. Nennstrom:3 A
Wirkungsgrad (Typ):91% @ 12V in; 90% @ 24V in
Eingangsspannungsbereich:8–32 V
Arbeitstemperatur:-35 to +80 °C
Wasserfestigkeit:IP68
Überlastschutz:Yes
Überhitzungsschutz:Yes
Überspannungsschutz:Yes
Kurzschlussschutz:Yes
Nennspannung:12/24 V

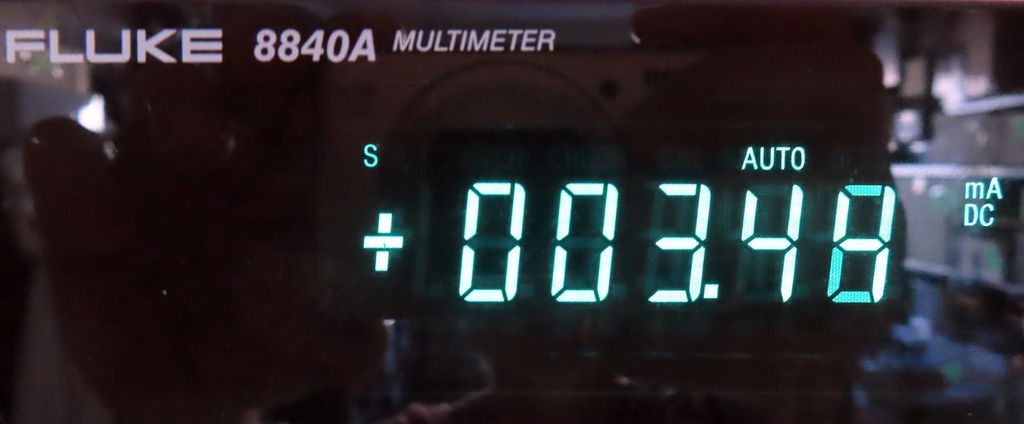

Leerlaufstrom: 3 mA (12V input)
Galvanisch getrennt:No
Abmessungen:64 x 27 x 14 mm
Gewicht:41 g
Kühlung:Air
Gefertigt nach:ISO 9001:2015
CE-Konformitäten:EMC 2014/30/EU, RoHS 2011/65/EU
ZertifizierungenZertifizierungenZertifizierungen

Downloads

Note on customer reviews

Customer reviews may have been submitted via our online shop as well as through external sales platforms. For this purpose, we use Judge.me Reviews.
Häufig gestellte Fragen

Can a 5 V/3 A converter fast charge a 15 W smartphone?

No. At 5 V and a maximum of 3 A, the output power is at most 15 W. Depending on the smartphone, cable, and charging protocol, the actual power drawn may be even lower.
