Anschlusstyp:Ring terminal

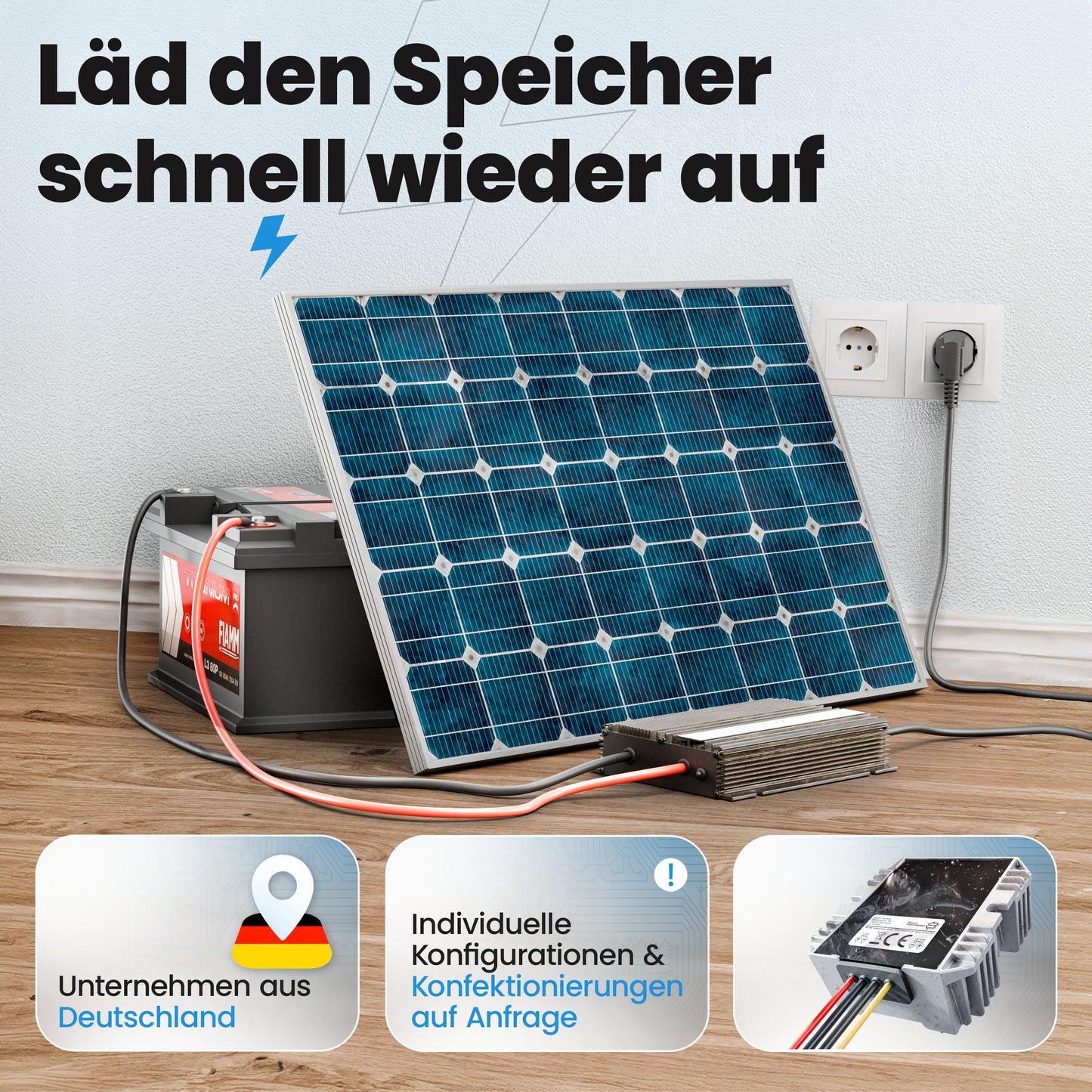

12V LiFePO4 battery charger 14.6V 40A 600W ring terminal

Artikelnr.: 02-50-13

GTIN:4262375690378

Bis zu 96 % Wirkungsgrad
Staub- & wasserdicht
Optimiert für LiFePO4
Lüfterlos & Leise
BMS-Wake-up
Title
€179,99 EUR

incl. VAT
Free shipping in Germany

Immediately Available
Sold out
Back in stock soon
Hurry! BUY NOW

Immediately Available

Title
  • PayPal
  • Mastercard
  • Maestro
  • Visa
  • Google Pay
  • Apple Pay
  • American Express
  • Union Pay
  • Rechnung

Technical Support

Free shipping within Germany

30-day returns

PayPal Buyer Protection

Pay in 30 days

  • Product Description

  • 3D model

  • Technical specifications

  • Downloads

  • Effizientes Laden|92–96 % Wirkungsgrad und ein hoher Leistungsfaktor unterstützen eine verlustarme, zuverlässige Energieübertragung beim Laden
  • Lüfterlos & Leise|Kühlung durch freie Luftkonvektion ermöglicht einen leisen Betrieb ohne Lüfter und ohne bewegliche Kühlkomponenten
  • Robuste Ausführung|Vergossene Elektronik für den festen Einbau in Fahrzeugen, Booten, Camping- und Industrieanwendungen
  • BMS-Wake-Up & Schutzfunktionen|Unterstützt integrierte BMS-Systeme und kann abgeschaltete BMS im Schutzmodus reaktivieren. Zusätzlich Schutz gegen Überstrom, Überspannung, Kurzschluss und Übertemperatur
Warnhinweise und Inkompatibilität
Nicht geeignet für Blei-Säure-, AGM- oder Gel-Batterien.
Model:L-230V1240 (02-50-13)
Restwelligkeit:300mVp-p
Max. Nennleistung:600W
Max. Nennstrom:40A+/- 3%
Wirkungsgrad (Typ):94-96% @230VAC, 92-94% @110VAC
Eingangsspannungsbereich:90-265VAC
Arbeitstemperatur:-40°C to +60°C
Wasserfestigkeit:IP65
Überlastschutz:Yes
Überhitzungsschutz:Yes
Überspannungsschutz:Yes
Kurzschlussschutz:Yes
Geeigneter Batterietyp: LiFePO4
Eingangsfrequenz:50Hz/60Hz
Abmessungen:190 x 145 x 40 mm
Gewicht:~2.1 kg
Kühlung:Heatsink, fanless
Gefertigt nach:ISO 9001:2015
CE-Konformitäten:EN 60950, CE & RE EN 55022 Class B, ESD & RS EN/IEC 61000-4-2 and EN/IEC 61000-4-3, CS EN/IEC 61000-4-6, RoHS Annex (EU) 2017/2102
ZertifizierungenZertifizierungenZertifizierungen

Product Description

  • Pure LiFePO4|Specially developed for 12V LiFePO4 batteries (charge termination voltage 14.6V CC/CV). Supports integrated BMS systems and can reactivate BMS shut-offs (protection mode). Not suitable for lead-acid, AGM, or gel batteries.
  • High charging performance|Up to 96% efficiency with up to 600W charging power. Charges a 60Ah LiFePO4 battery fully in approx. 1.9 hours — fast and efficient.
  • Waterproof & robust|IP65 protection class. The potted housing provides reliable protection against dust, splash water, and vibration — ideal for RVs, boats, off-grid use, and workshops.
  • Fanless & quiet|Innovative passive cooling design without fans — no dust intake, no moving parts, and silent operation. Increased housing temperature during the charging process is normal due to the design and ensures high long-term reliability.
  • Comprehensive protection|Integrated protection functions against overvoltage, short circuit, overload, and overtemperature. No sparking when connecting positive and negative terminals for added safety during connection.
Warnhinweise und Inkompatibilität
Nicht geeignet für Blei-Säure-, AGM- oder Gel-Batterien.

3D Model

Technical Data

Model:L-230V1240 (02-50-13)
Restwelligkeit:300mVp-p
Max. Nennleistung:600W
Max. Nennstrom:40A+/- 3%
Wirkungsgrad (Typ):94-96% @230VAC, 92-94% @110VAC
Eingangsspannungsbereich:90-265VAC
Arbeitstemperatur:-40°C to +60°C
Wasserfestigkeit:IP65
Überlastschutz:Yes
Überhitzungsschutz:Yes
Überspannungsschutz:Yes
Kurzschlussschutz:Yes
Geeigneter Batterietyp: LiFePO4
Eingangsfrequenz:50Hz/60Hz
Abmessungen:190 x 145 x 40 mm
Gewicht:~2.1 kg
Kühlung:Heatsink, fanless
Gefertigt nach:ISO 9001:2015
CE-Konformitäten:EN 60950, CE & RE EN 55022 Class B, ESD & RS EN/IEC 61000-4-2 and EN/IEC 61000-4-3, CS EN/IEC 61000-4-6, RoHS Annex (EU) 2017/2102
ZertifizierungenZertifizierungenZertifizierungen

Downloads

Note on customer reviews

Customer reviews may have been submitted via our online shop as well as through external sales platforms. For this purpose, we use Judge.me Reviews.

Häufig gestellte Fragen

Which charger is compatible with my LiFePO₄ battery?

The charger's voltage and charging profile must match the battery chemistry and nominal voltage.
In addition, the charging current must be within the specifications of the battery or BMS manufacturer.

The battery capacity mainly influences the charging time. If you are unsure, please send us the voltage, capacity, battery type, and the recommended maximum charging current.
