Anschlusstyp:Clamps

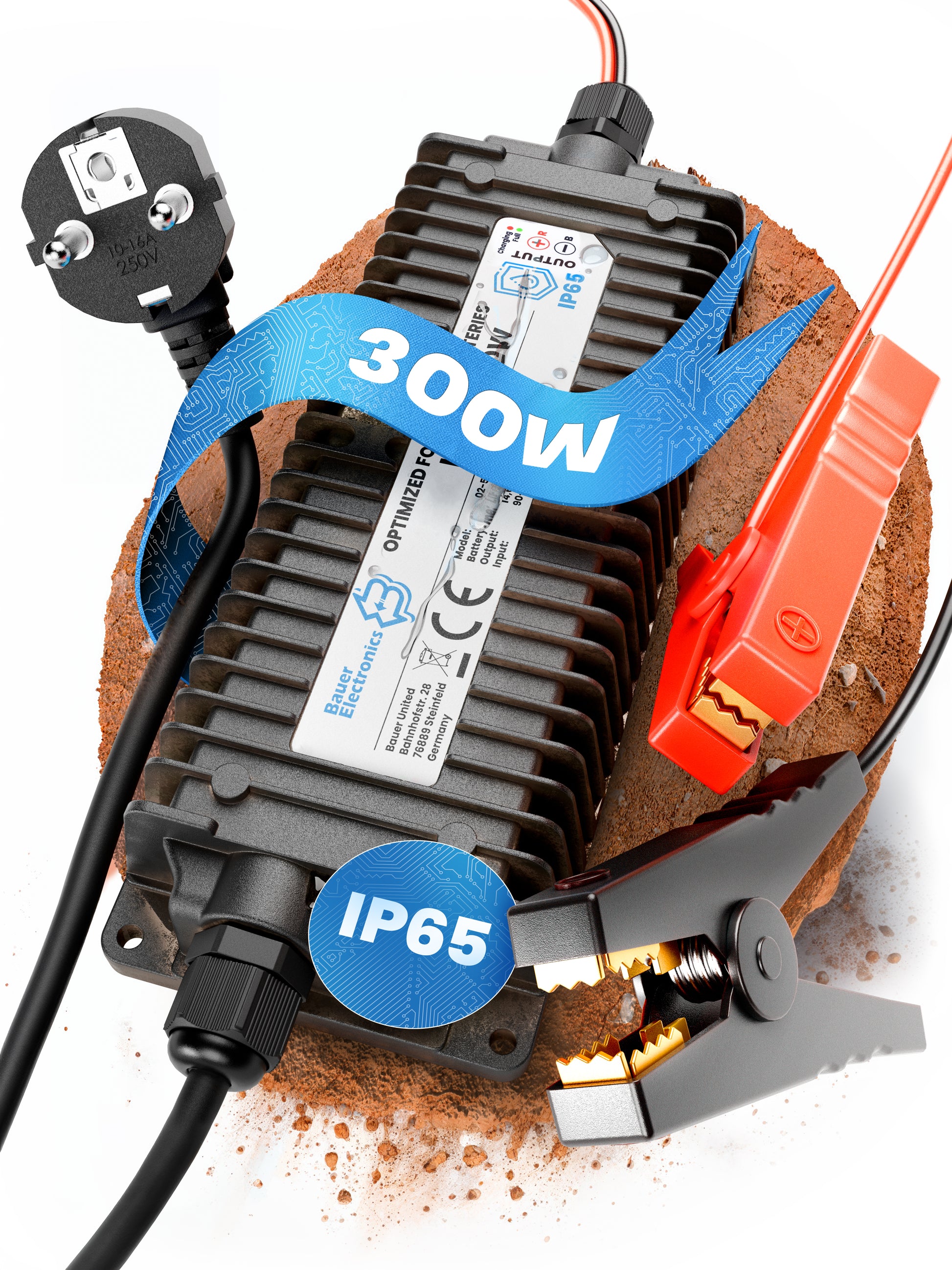

12V LiFePO4 Battery Charger 14.6V 20A 300W

Artikelnr.: 02-50-01

GTIN:4262375690194

Entwickelt für den dauerhaften Einsatz mit LiFePO₄-Batterien
Wirkungsgrad bis 96%
Lüfterlos & Leise | Innovatives Kühldesign
Title
€89,99 EUR

inkl. MwSt. Kostenloser Versand in Deutschland

Sofort Lieferbar
Ausverkauft
In kürze wieder Verfügbar
Hurry! LET BUY NOW

Sofort Lieferbar

Title
  • PayPal
  • Mastercard
  • Maestro
  • Visa
  • Google Pay
  • Apple Pay
  • American Express
  • Union Pay
  • Rechnung

Technischer Support

Kostenloser Versand innerhalb Deutschland

30 Tage Rückgabe

PayPal Käuferschutz

Bezahle in 30 Tagen

  • Produktbeschreibung

  • 3D Modell

  • Technische Daten

  • Downloads

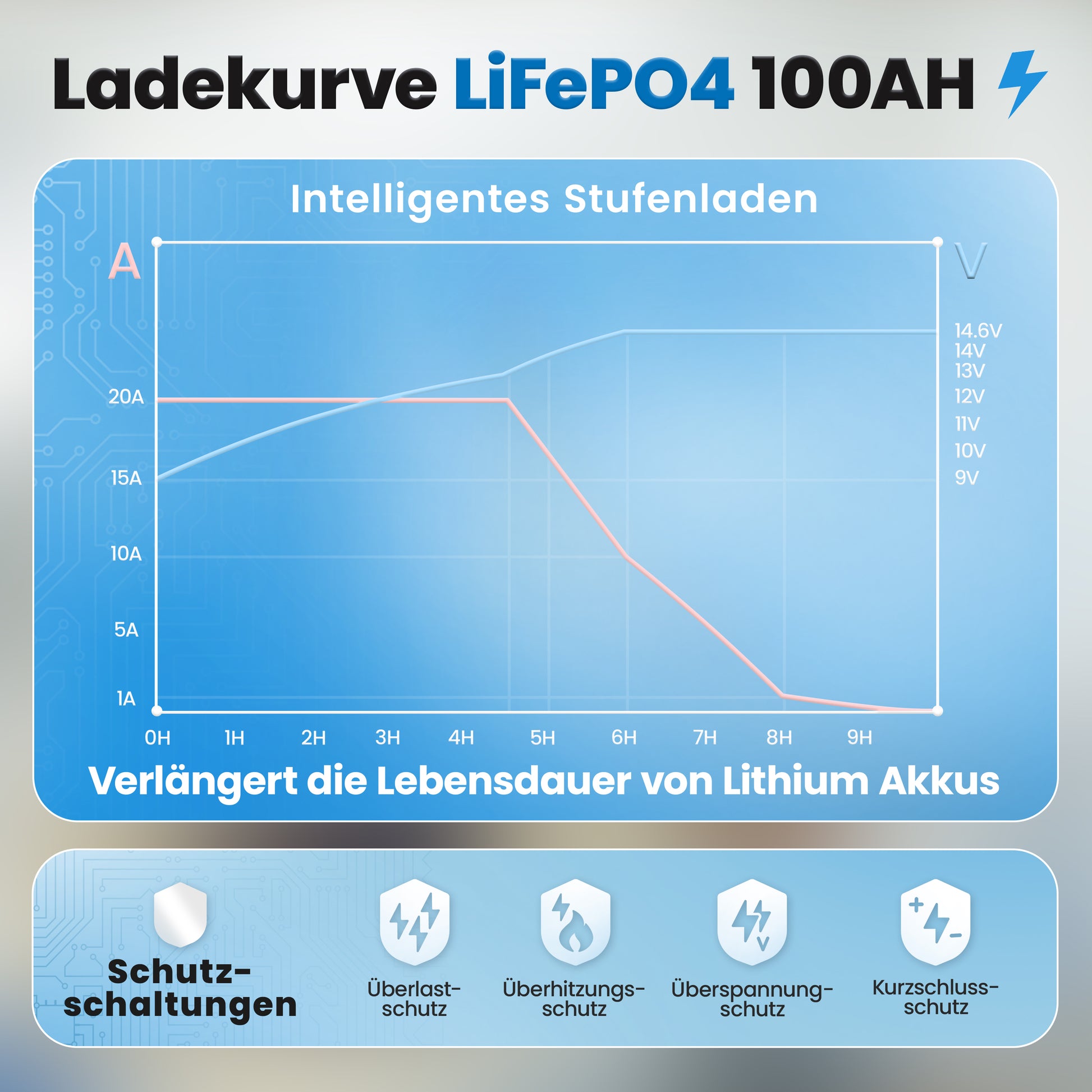

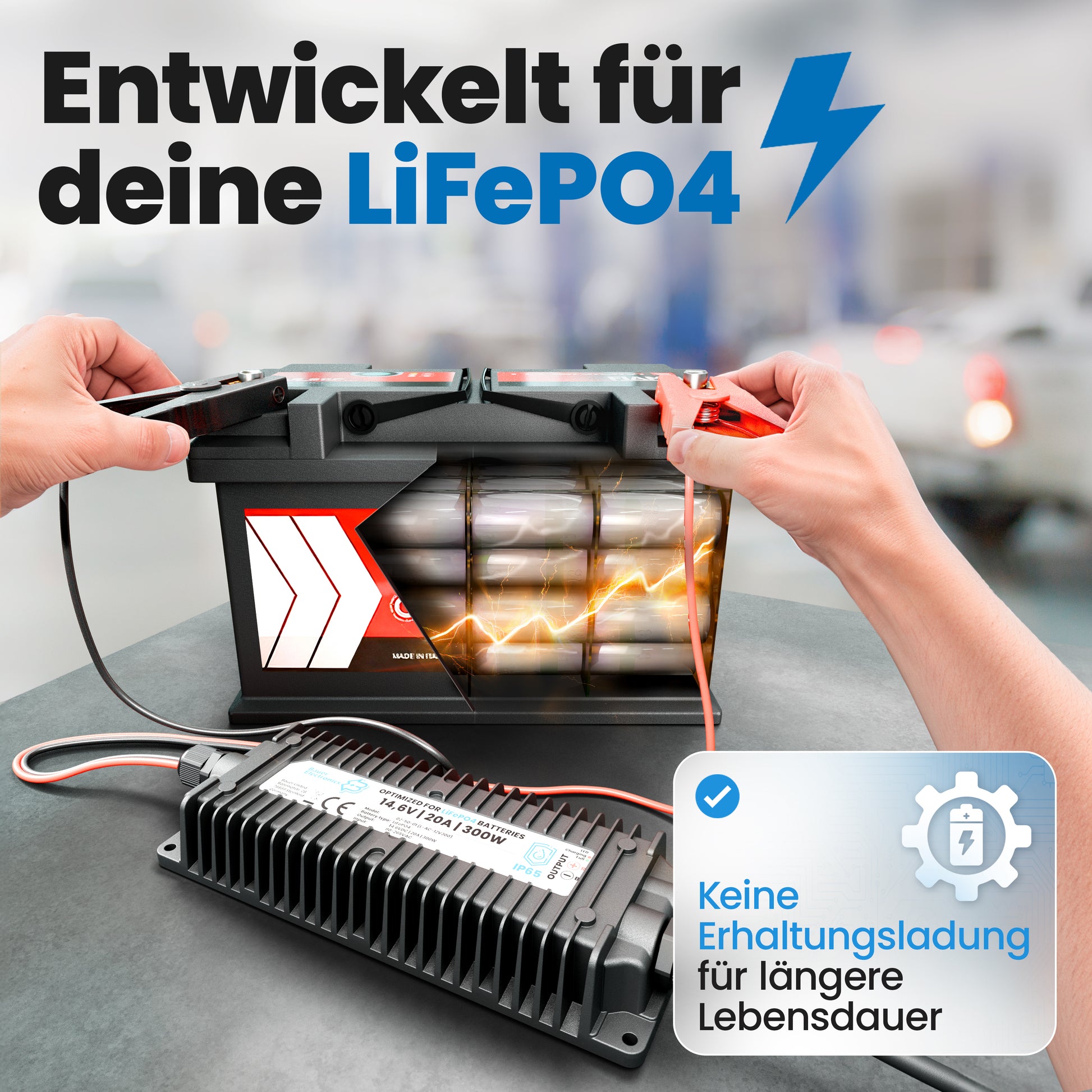

  • Pure LiFePO4|Specially developed for 12V LiFePO4 batteries (charge termination voltage 14.6 V CC/CV). Supports integrated BMS systems and can reactivate shut-off BMS (protection mode). Not suitable for lead-acid, AGM, or gel batteries.
  • High charging performance|Up to 96% efficiency with up to 300 W charging power. Charges a 60 Ah LiFePO4 battery, for example, to full capacity in approx. 3.8 hours — fast and efficient.
  • Waterproof & Robust|IP65 protection class. Potted housing provides reliable protection against dust, splash water, and vibration — ideal for motorhomes, boats, off-grid use, and workshops.
  • Fanless & quiet|Innovative passive cooling design without a fan — no dust ingress, no moving parts, and silent operation. Increased housing temperature during the charging process is normal due to the design and ensures high long-term reliability.
  • Comprehensive protection|Integrated protection functions against overvoltage, short circuit, overload, and overtemperature. No sparking when contacting the positive and negative terminals for additional safety during connection.
Warnhinweise und Inkompatibilität
Nicht geeignet für Blei-Säure-, AGM- oder Gel-Batterien.
Model:L-230V1220 (02-50-01)
Restwelligkeit:300mVp-p
Max. Nennleistung:300W
Max. Nennstrom:20A+/- 3%
Wirkungsgrad (Typ):94-96% @230VAC, 92-94% @110VAC
Eingangsspannungsbereich:90-265VAC
Arbeitstemperatur:-40°C - +60°C
Wasserfestigkeit:IP65
Überlastschutz:Ja
Überhitzungsschutz:Ja
Überspannungsschutz:Ja
Kurzschlussschutz:Ja
Geeigneter Batterietyp: LiFePO4
Eingangsfrequenz:50Hz/60Hz

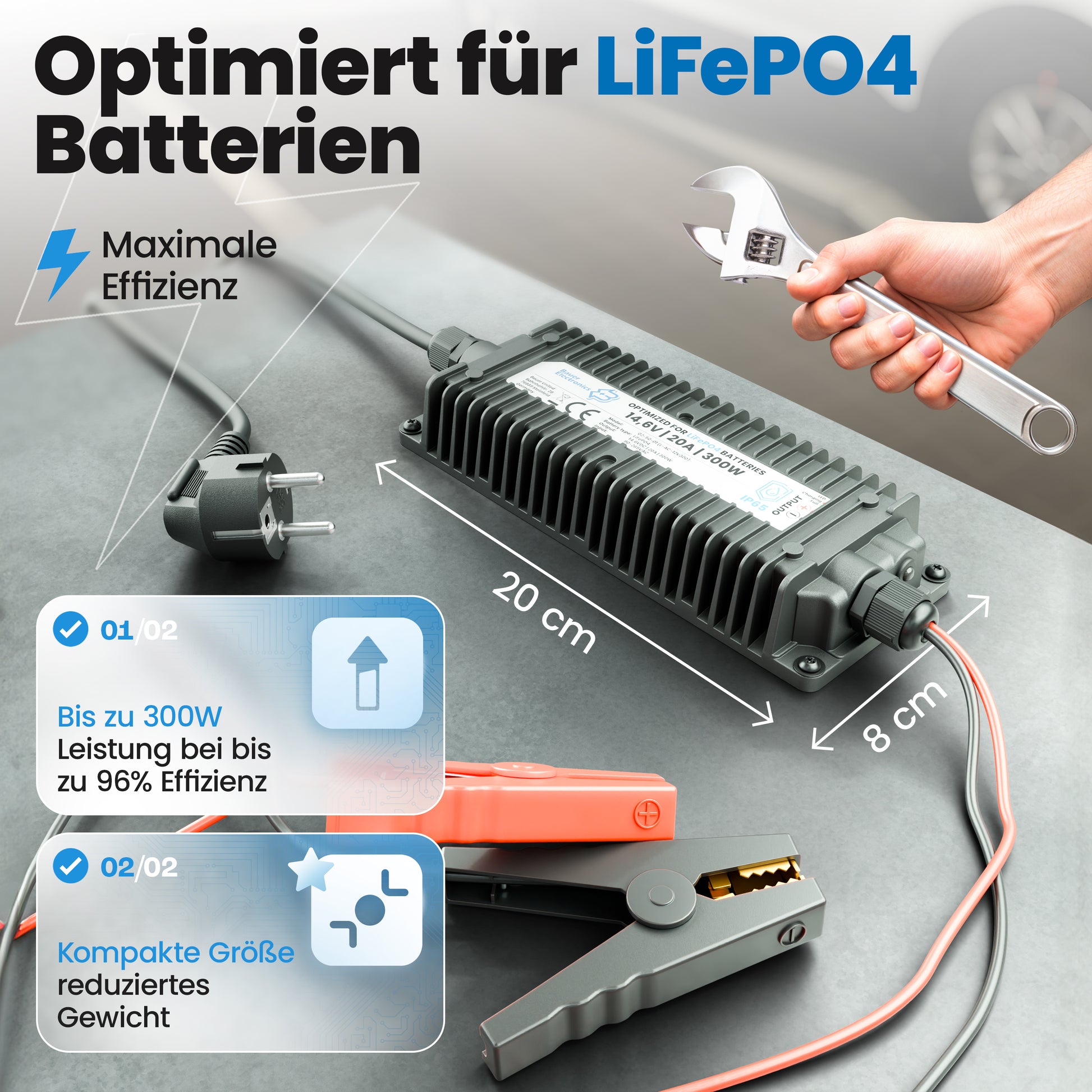

Abmessungen:200 x 77 x 30 mm
Gewicht:~1,1 kg
Kühlung:Kühlrippen, ohne Lüfter
Gefertigt nach:ISO 9001:2015
CE-Konformitäten:EN 60950, CE & RE EN 55022 Class B, ESD & RS EN/IEC 61000-4-2 und EN/IEC 61000-4-3, CS EN/IEC 61000-4-6, RoHS Annex (EU) 2017/2102
ZertifizierungenZertifizierungenZertifizierungen

Produktbeschreibung

  • Pure LiFePO4|Specially developed for 12V LiFePO4 batteries (charge termination voltage 14.6 V CC/CV). Supports integrated BMS systems and can reactivate shut-off BMS (protection mode). Not suitable for lead-acid, AGM, or gel batteries.
  • High charging performance|Up to 96% efficiency with up to 300 W charging power. Charges a 60 Ah LiFePO4 battery, for example, to full capacity in approx. 3.8 hours — fast and efficient.
  • Waterproof & Robust|IP65 protection class. Potted housing provides reliable protection against dust, splash water, and vibration — ideal for motorhomes, boats, off-grid use, and workshops.
  • Fanless & quiet|Innovative passive cooling design without a fan — no dust ingress, no moving parts, and silent operation. Increased housing temperature during the charging process is normal due to the design and ensures high long-term reliability.
  • Comprehensive protection|Integrated protection functions against overvoltage, short circuit, overload, and overtemperature. No sparking when contacting the positive and negative terminals for additional safety during connection.
Warnhinweise und Inkompatibilität
Nicht geeignet für Blei-Säure-, AGM- oder Gel-Batterien.

3D Modell

Technische Daten

Model:L-230V1220 (02-50-01)
Restwelligkeit:300mVp-p
Max. Nennleistung:300W
Max. Nennstrom:20A+/- 3%
Wirkungsgrad (Typ):94-96% @230VAC, 92-94% @110VAC
Eingangsspannungsbereich:90-265VAC
Arbeitstemperatur:-40°C - +60°C
Wasserfestigkeit:IP65
Überlastschutz:Ja
Überhitzungsschutz:Ja
Überspannungsschutz:Ja
Kurzschlussschutz:Ja
Geeigneter Batterietyp: LiFePO4
Eingangsfrequenz:50Hz/60Hz
Abmessungen:200 x 77 x 30 mm
Gewicht:~1,1 kg
Kühlung:Kühlrippen, ohne Lüfter
Gefertigt nach:ISO 9001:2015
CE-Konformitäten:EN 60950, CE & RE EN 55022 Class B, ESD & RS EN/IEC 61000-4-2 und EN/IEC 61000-4-3, CS EN/IEC 61000-4-6, RoHS Annex (EU) 2017/2102
ZertifizierungenZertifizierungenZertifizierungen

Downloads
